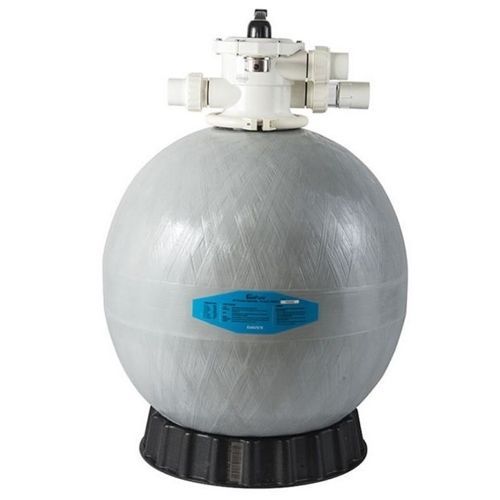

Davey Monarch EcoPure Fiberglass Sand Filter

Davey EcoPure range of Top Mount Multi Port Valve (MPV) media filters is economical to maintain, very reliable, and easy to use. The Davey EcoPure Media Filter includes a 6-way top mount MPV, pressure gauge, sight glass & unions, and inner tank design on the 18″ to 25″ diameter tanks.

Key Features:

Simple backwash
Constructed from strong corrosion and UV resistance polyester reinforced fiberglass
6 way multiport valve
Built-in waste port sight glass for high visibility during backwashing
Large diameter tank for maximum filtration area
Automatic air bleed to stop air build up in the tank
Accurate stainless steel oil filled pressure gauge
A.B.S. barrel unions
Suitable for both salt and fresh water pool systems
Suitable for sand, Zelbrite and silica media
10 Year Tank Warranty with 3 Year Warranty on a multiport valve.

Benefits:

Longer working life
Virtually maintenance free
Maximum filtration area
High rate design for max efficiency

Note: Sand/Media is not included.

Specification	Davey Monarch EcoPure-21″	Davey Monarch EcoPure 25″	Davey Monarch EcoPure-28″	Davey Monarch EcoPure-40″
Package Height	62	73	80	—
Package Length	53	65	74	—
Package Width	53	65	74	—
Brand	Davey	Davey	Davey	Davey
Model	Monarch EcoPure-21	Monarch EcoPure 25″	Monarch EcoPure-28	Monarch EcoPure-40
Product Type	Sand Filter	Sand Filter	Sand Filter	Sand Filter
Shipping Type	Bulky – Large	Bulky – Large	Bulky – Large	Bulky – Large
Warranty	10 Years Tank, 3 Years Valve	10 Years Tank, 3 Years Valve	10 Years Tank, 3 Years Valve	10 Years Tank, 3 Years Valve
Diameter (inches)	21	25	28	40
Max Flow Rate (LPM)	185 LPM	260 LPM	325 LPM	650 LPM
Sand Required (kg)	85 Kg	145 Kg	215 Kg	620 Kg
Zeolite/Glass Required (kg)	64 Kg	110 Kg	158 Kg	465 Kg
Plumbing	40mm	40/50mm	50mm	50mm
Multi Port Valve	40mm	40mm	40mm	50mm
Dimensions L × W × H (mm)	535 × 535 × 845	635 × 635 × 950	710 × 710 × 1020	1000 × 1000 × 1400

Davey Monarch EcoPure Fiberglass Sand Filter Brochure

Davey Monarch EcoPure Fiberglass Sand Filter Manual

Shipping

Same-day dispatch applies to orders received by 12.00 pm (AEST) during business days. Orders received after 12.00 pm and on weekends or public holidays will be dispatched on the next business day.

Delivery fees are $50 flat-rate per order Australia-wide, no matter how many products are in it. Orders containing bulky items like sand filters, acoustic boxes, heat pumps, pool covers, and pool slides may incur additional fees as they require specialized carriers.

Below are the estimated time to arrival in business days once an order is shipped.

Destination	NSW	VIC	QLD	SA	WA/NT
Business Days	N/A	N/A	1 – 2	N/A	N/A

Rural and remote addresses, where delivery is not provided every day, may take longer.

Returns

We take full responsibility for the safe arrival of the products that you order from us. We will replace at our expense any product that arrives faulty, is damaged during transit, or is the incorrect product.

If you have any questions about our shipping policy or our return policy, please contact us on (07) 4051 9344 or through our contact us form.

Additional information

Dimensions	65 × 65 × 73 cm
Size	21” with 40mm Valve, 25” with 40mm Valve, 28” with 50 mm Valve, 40” with 50 mm Valve
